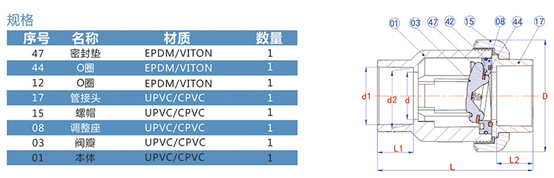

單由令止回閥
|
尺寸 |
d |
d1 |
d2 |
D |
L |
L1 |
||||||
|
ANSI |
DIN |
JIS |
CNS |
ANSI |
DIN |
JIS |
CNS |
|||||
|
1/2"(15) |
15 |
21.54 |
20.30 |
22.40 |
22.40 |
21.23 |
20.10 |
21.73 |
21.90 |
54.00 |
90.00 |
22.30 |
|
3/4"(20) |
20 |
26.87 |
25.30 |
26.45 |
26.40 |
26.57 |
25.10 |
25.69 |
25.90 |
63.00 |
105.50 |
25.50 |
|
1"(25) |
25 |
33.65 |
32.30 |
32.55 |
34.50 |
33.27 |
32.10 |
31.70 |
33.90 |
73.50 |
124.00 |
28.60 |
|
1?"(32) |
32 |
42.42 |
40.30 |
38.60 |
42.50 |
42.04 |
40.10 |
37.65 |
41.90 |
84.50 |
139.00 |
32.00 |
|
1?"(40) |
40 |
48.56 |
50.30 |
48.70 |
48.60 |
48.11 |
50.10 |
47.74 |
47.90 |
98.00 |
149.50 |
35.00 |
|
2"(50) |
50 |
60.63 |
63.30 |
60.80 |
60.60 |
60.17 |
63.10 |
59.78 |
59.90 |
119.00 |
168.50 |
38.00 |
