優點：
1) 氣密性好
2) 開關扭力小
3) 把手可更換，簡易經濟
4) 材料經過納米改性，提高產品耐壓性及抗沖擊性能
5) 原料添加抗紫外線吸收劑和抗氧劑，提高產品耐候性，耐老化性能
6) 閥門出廠前100%壓力測試
描述：
1) 材質:UPVC,CPVC,HT-CPVC,PVDF,PPH
2) 尺寸:1/2'-4'
3) 連接:插口,螺紋(NPT,BSPF,PT)
4) 標準:ANSI,DIN,JIS,CNS
5) 工作壓力:150 PSI
6) 操作溫度:UPVC(0~45℃);PPH、CPVC&HT-CPVC(0~95℃)
PVDF(-40~150℃);
7) 把手顏色:紅色,藍色
本體顏色:UPVC(深灰色/白色),CPVC(淺灰色),
HT-CPVC(米黃色),PPH(米黃色），PVDF（象牙色）
|

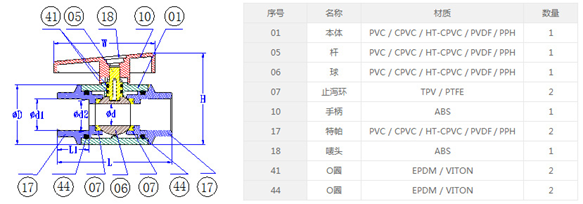

尺寸 |
d |
d1 |
d2 |
D |
L |
L1 |
H |
W |
操作力矩 (N·M) |
||||||
|
ANSI |
DIN |
JIS |
CNS |
ANSI |
DIN |
JIS |
CNS |
||||||||
|
1/2"(15) |
15 |
21.54 |
20.30 |
22.40 |
22.40 |
21.23 |
20.00 |
17.75 |
17.90 |
44.00 |
79.00 |
22.00 |
66.00 |
70.00 |
2.00 |
|
3/4"(20) |
20 |
26.87 |
25.31 |
26.45 |
26.45 |
26.57 |
25.00 |
25.69 |
25.90 |
52.20 |
106.40 |
31.50 |
78.00 |
80.00 |
2.50 |
|
1"(25) |
25 |
33.65 |
32.33 |
32.55 |
32.55 |
33.27 |
32.00 |
31.70 |
34.90 |
59.00 |
116.20 |
35.00 |
88.00 |
90.00 |
4.00 |
|
1?"(32) |
32 |
42.42 |
40.30 |
38.60 |
38.60 |
42.04 |
40.10 |
37.65 |
41.90 |
70.00 |
125.70 |
35.00 |
102.00 |
100.00 |
5.00 |
|
1?"(40) |
40 |
48.56 |
50.30 |
48.70 |
48.70 |
48.11 |
50.10 |
47.74 |
47.90 |
81.00 |
136.50 |
37.00 |
121.5 |
130.00 |
6.00 |
|
2"(50) |
50 |
60.63 |
63.30 |
60.80 |
60.80 |
60.17 |
63.10 |
59.78 |
59.90 |
98.000 |
149.30 |
38.00 |
137.00 |
130.00 |
6.00 |
|
2?"(65) |
65 |
73.38 |
75.40 |
76.60 |
76.60 |
72.85 |
75.00 |
75.68 |
75.90 |
122.00 |
197.50 |
53.00 |
160.30 |
150.00 |
8.00 |
|
3"(80) |
75 |
89.31 |
90.42 |
89.60 |
89.60 |
88.70 |
89.98 |
88.55 |
88.90 |
138.00 |
208.40 |
51.00 |
192.50 |
200.00 |
15.00 |
|
4"(100) |
97 |
114.76 |
110.52 |
114.70 |
114.70 |
114.10 |
109.98 |
113.60 |
113.80 |
177.00 |
254.00 |
60.00 |
238.50 |
260.00 |
40.00 |
